CPRO3 CHILL

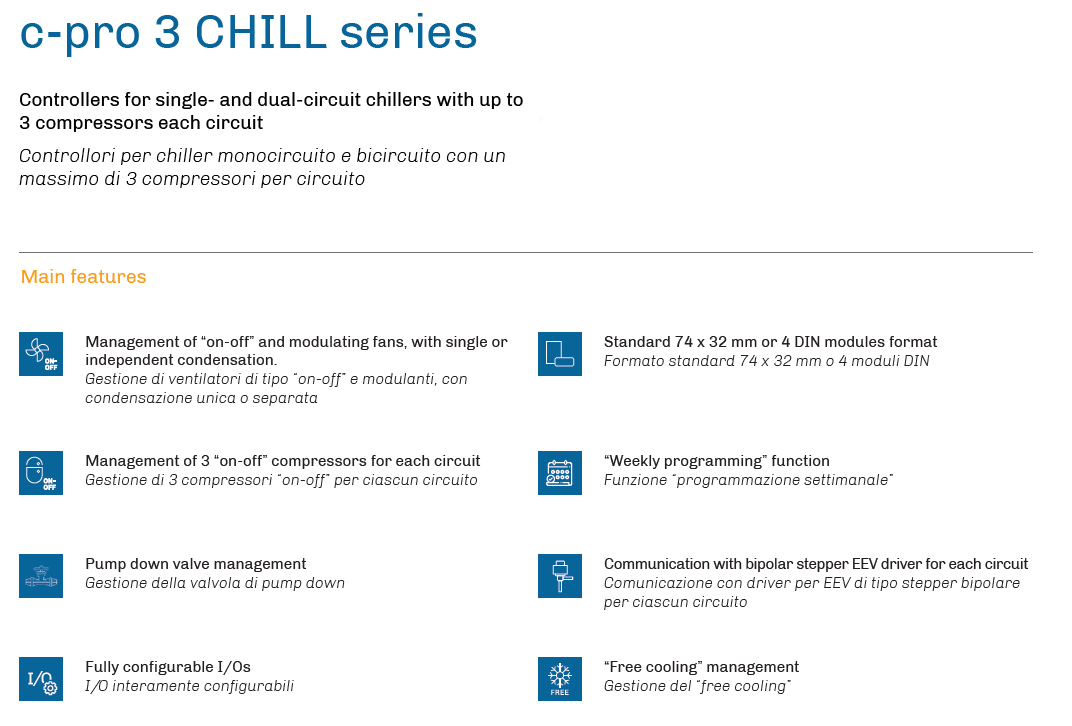

c-pro 3 CHILL is a series of fully configurable controllers for running single- and dual-circuit air to water and water to water chillers with up to 3 compressors for each circuit.
The system is able to manage on-off compressors and on-off and modulating fans, with single or independent condensation. It can manage the pump down solenoid valve, "free cooling” and the "weekly programming” function.
Equipped with a wide variety of communications ports, the controllers can be connected with an I/O expansion and with a driver for the management of bipolar stepper electronic expansion valves.

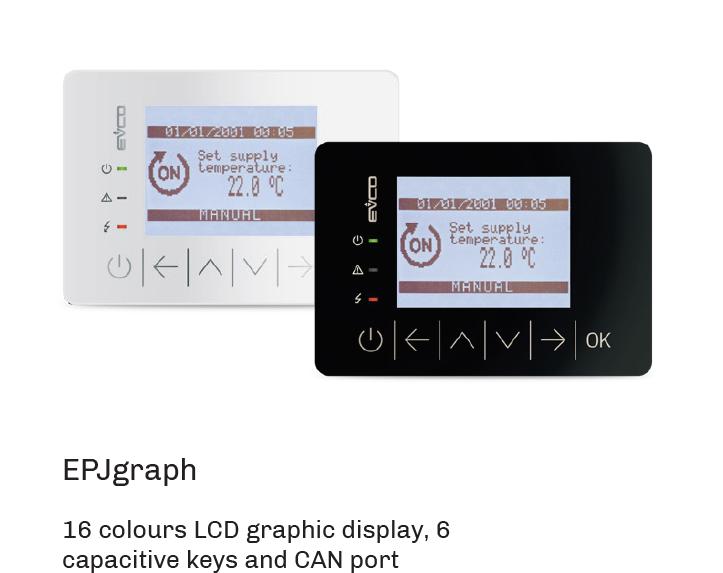

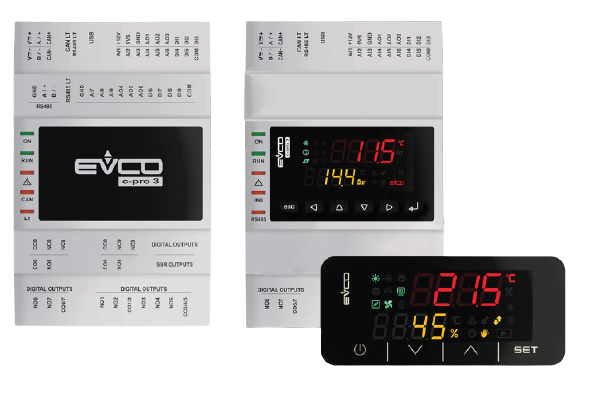

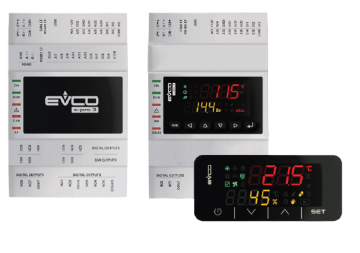

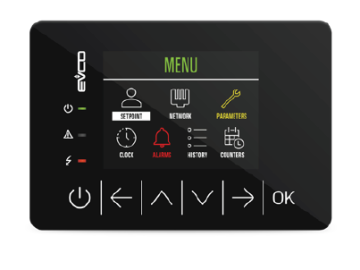

The solution is available in the following hardware formats: - c-pro 3 nano (74x32 mm) with built-in LED display, capacitive touch keys, 25 I/Os, IP65 frontal potection and panel fitting; - c-pro 3 micro (4 DIN modules) in blind version or with built-in LED user interface, up to 33 I/Os and DIN rail installation. Both formats can be connected to the stylish interface EPJ graph, which is supplied based on the specific needs for panel or for wall mounting.
The system is able to manage on-off compressors and on-off and modulating fans, with single or independent condensation. It can manage the pump down solenoid valve, "free cooling” and the "weekly programming” function.
Equipped with a wide variety of communications ports, the controllers can be connected with an I/O expansion and with a driver for the management of bipolar stepper electronic expansion valves.
The solution is available in the following hardware formats: - c-pro 3 nano (74x32 mm) with built-in LED display, capacitive touch keys, 25 I/Os, IP65 frontal potection and panel fitting; - c-pro 3 micro (4 DIN modules) in blind version or with built-in LED user interface, up to 33 I/Os and DIN rail installation. Both formats can be connected to the stylish interface EPJ graph, which is supplied based on the specific needs for panel or for wall mounting.

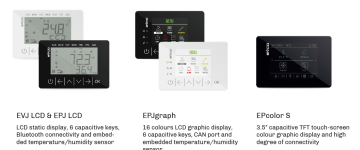

USER INTERFACES AVAILABLE ARE;
MAIN FEATURES
